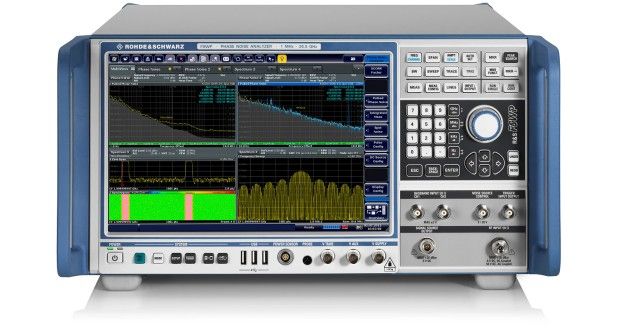

FSWP相位噪聲分析儀和VCO測試儀結合極低噪聲內源和互相關技術，實現了相位噪聲測量的高靈敏度。因此，即便測量高度穩定的源 (例如在雷達應用中的源) 也只需幾秒鐘。脈沖信號測量、附加相位噪聲 (包括脈沖) 特性描述以及集成化信號和頻譜分析等附加選件使此分析儀成為一臺出色的測試儀器。
主要特點
- 頻率范圍：1 MHz 至 8 GHz/26.5 GHz
- 互相關和極低噪聲內部參考源實現相位噪聲測量的高靈敏度
1 GHz 載波頻率和 10 kHz 頻偏時，典型相位噪聲值為 –172 dBc (1 Hz)
10 GHz 載波頻率和 10 kHz 頻偏時，典型相位噪聲值為 -153 dBc (1 Hz)
- 調幅噪聲和相位噪聲同步測量
-脈沖源相位噪聲一鍵測量
- 內部源適用于測量附加相位噪聲，包括脈沖信號的相位噪聲
- 信號與頻譜分析儀以及相位噪聲分析儀集成在一個盒子中
信號與頻譜分析儀，10 Hz 至 8 GHz/26.5 GHz
低顯示平均噪聲電平 (DANL) –156 dBm (1 Hz)（未打開噪聲消除功能）和高三階交調（TOI，典型值為 25 dBm）下，具有高動態范圍
80 MHz 信號分析帶寬
總測量不確定度：在 3.6 GHz 以下，小于 0.2 dB，在 8 GHz 以下，小于 0.3 dB
觸摸屏操作
12.1" 超大顯示屏，可同時查看多個測量窗口
多個測量應用可并行運行和顯示
- 高速測量
- 低噪聲內部直流源，用于 VCO 特性測量
Specifications
| Base unit | ||
| Frequency | ||
| Frequency range, RF input | ||
| Phase noise, amplitude noise measurement | R&S?FSWP8 | 1?MHz to 8?GHz |
| ? | R&S?FSWP26 | 1?MHz to 26.5?GHz |
| ? | R&S?FSWP50 | 1?MHz to 50?GHz |
| Phase noise measurement | ? | ? |
| Measurement results | ? | SSB phase noise, spurious signals, integrated RMS phase deviation, residual FM, time jitter |
| Offset frequency range | input signal ≤ 1?GHz | 10?mHz to 30?% of carrier frequency |
| ? | input signal > 1?GHz | 10?mHz to 300?MHz |
| Phase noise sensitivity with R&S?FSWP-B60 option (no. of correlations = 1, start offset = 1?Hz)1) | |||||||||
| RF input frequency | Offset from carrier | ||||||||
| ? | 1?Hz | 10?Hz | 100?Hz | 1?kHz | 10?kHz | 100?kHz | 1?MHz | 10?MHz | ≥ 30?MHz |
| 10?MHz | –96 | –128 | –140 | –158 | –170 | –170 | –170 | – | – |
| 100?GHz | –76 | –108 | –136 | –163 | –170 | –173 | –175 | –175 | –175 |
| 1?GHz | –56 | –88 | –116 | –143 | –166 | –173 | –173 | –173 | –173 |
| 3?GHz | –46 | –78 | –106 | –133 | –156 | –158 | –163 | –170 | –170 |
| 7?GHz | –39 | –71 | –99 | –130 | –152 | –153 | –157 | –166 | –166 |
| 10?GHz | –36 | –68 | –96 | –128 | –147 | –150 | –155 | –173 | –173 |
| 16?GHz | –32 | –64 | –92 | –124 | –143 | –146 | –151 | –170 | –170 |
| 26?GHz | –28 | –60 | –88 | –120 | –139 | –142 | –147 | –166 | –166 |
| 50?GHz | –22 | –54 | –82 | –114 | –133 | –136 | –141 | –160 | –160 |
| Phase noise sensitivity with R&S?FSWP-B61 option (no. of correlations = 1, start offset = 1?Hz)1) | |||||||||
| RF input frequency | Offset from carrier | ||||||||
| ? | 1?Hz | 10?Hz | 100?Hz | 1?kHz | 10?kHz | 100?kHz | 1?MHz | 10?MHz | ≥ 30?MHz |
| 10?MHz | –108 | –130 | –142 | –160 | –170 | –170 | –170 | – | – |
| 100?MHz | –92 | –115 | –140 | –166 | –170 | –173 | –175 | –175 | –175 |
| 1?GHz | –72 | –95 | –120 | –150 | –166 | –173 | –173 | –173 | –173 |
| 3?GHz | –62 | –85 | –110 | –140 | –156 | –158 | –163 | –170 | –170 |
| 7?GHz | –55 | –78 | –103 | –133 | –152 | –153 | –157 | –166 | –166 |
| 10?GHz | –52 | –75 | –100 | –133 | –152 | –153 | –157 | –173 | –175 |
| 16?GHz | –48 | –71 | –96 | –129 | –148 | –149 | –153 | –170 | –171 |
| 26?GHz | –44 | –67 | –92 | –125 | –144 | –145 | –149 | –166 | –167 |
| 50?GHz | –38 | –61 | –86 | –119 | –138 | –139 | –143 | –160 | –161 |
| Amplitude noise measurement | |||||||||
| Offset frequency range | input signal ≤ 100?MHz | 10?mHz to 30?% of carrier frequency | |||||||
| ? | input signal > 100?MHz | 10?mHz to 30?MHz | |||||||
| AM noise sensitivity1) | |||||||||
| RF input frequency | Offset from carrier | ||||||||
| ? | 1?Hz | 10?Hz | 100?Hz | 1?kHz | 10?kHz | 100?kHz | 1?MHz | 10?MHz | 30?MHz |
| 1?GHz | –105 | –120 | –135 | –150 | –158 | –165 | –165 | –165 | –165 |
| Residual phase noise measurement (R&S?FSWP-B64 option), internal source | |||||||||
| Signal source | |||||||||
| Frequency range | R&S?FSWP8 | 10?MHz to 8?GHz | |||||||
| ? | R&S?FSWP26 | 10?MHz to 18?GHz | |||||||
| ? | R&S?FSWP50 | 10?MHz to 18?GHz | |||||||
| Additive phase noise measurement | |||||||||
| Offset frequency range | input signal ≤ 100?MHz | 10?mHz to 30?% of carrier frequency | |||||||
| ? | input signal > 100?MHz | 10?MHz to 30?MHz | |||||||
| AM noise sensitivity1) | |||||||||
| RF input frequency | Offset from carrier | ||||||||
| ? | 1?Hz | 10?Hz | 100?Hz | 1?kHz | 10?kHz | 100?kHz | 1?MHz | 3?MHz | |
| 1?GHz | –115 | –123 | –137 | –147 | –160 | –165 | –165 | –161 | |
| 10?GHz | –85 | –104 | –120 | –138 | –148 | –154 | –164 | –160 | |
1)?Values in dBc (1?Hz).
| R&S?FSWP-B1 signal and spectrum analyzer option | ||
| Frequency range | R&S?FSWP8 | 10?Hz to 8?GHz |
| ? | R&S?FSWP26 | 10?Hz to 26.5?GHz |
| ? | R&S?FSWP50 | 10?Hz to 50?GHz |
| Aging per year | ? | ±1 × 10?–7/year |
| ? | with R&S?FSWP-B4 option | ±3 × 10?–8/year |
| Resolution bandwidths | standard filter | 1?Hz to 10?MHz with R&S?FSWP-B8 option: 20?MHz, 50?MHz, 80?MHz additionally |
| ? | RRC filter | 18?kHz (NADC), 24.3?kHz (TETRA), 3.84 MHz (3GPP) |
| ? | channel filter | 100?Hz to 5?MHz |
| ? | video filter | 1?Hz to 10?MHz |
| I/Q demodulation bandwidths | ? | 10 MHz |
| ? | with R&S?FSWP-B80 option | 80 MHz |
| Displayed average noise level (DANL) | 2 GHz | typ. –150?dBm (1?Hz) |
| ? | 8 GHz | typ. –150?dBm (1?Hz) |
| ? | 20 GHz | typ. –145?dBm (1?Hz) |
| ? | 40 GHz | typ. –137?dBm (1?Hz) |
| DANL with preamplifier | 8 GHz | typ. –162?dBm (1?Hz) |
| ? | 20 GHz | typ. –160?dBm (1?Hz) |
| ? | 40 GHz | typ. –156?dBm (1?Hz) |
| Phase noise | 1?GHz carrier frequency, 10?kHz offset | typ. –138?dBm (1?Hz) |
| Total measurement uncertainty | < 8?GHz | < 0.4?dB |
