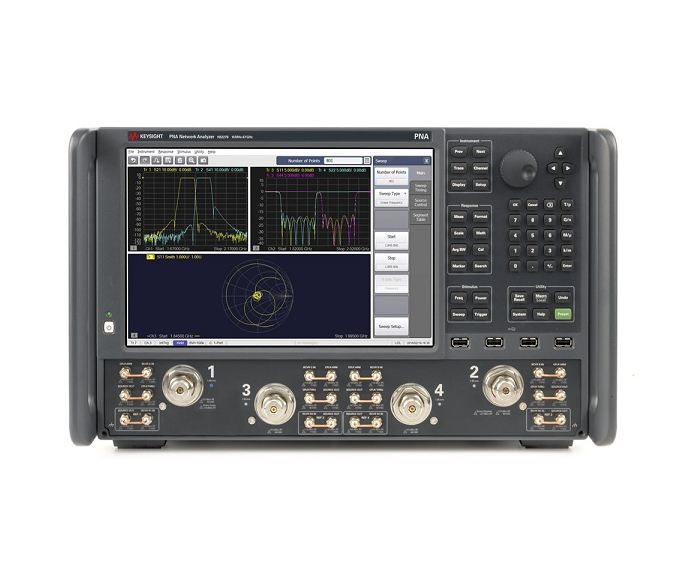

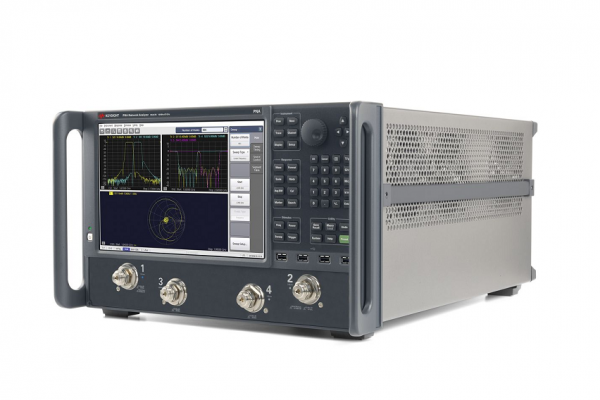

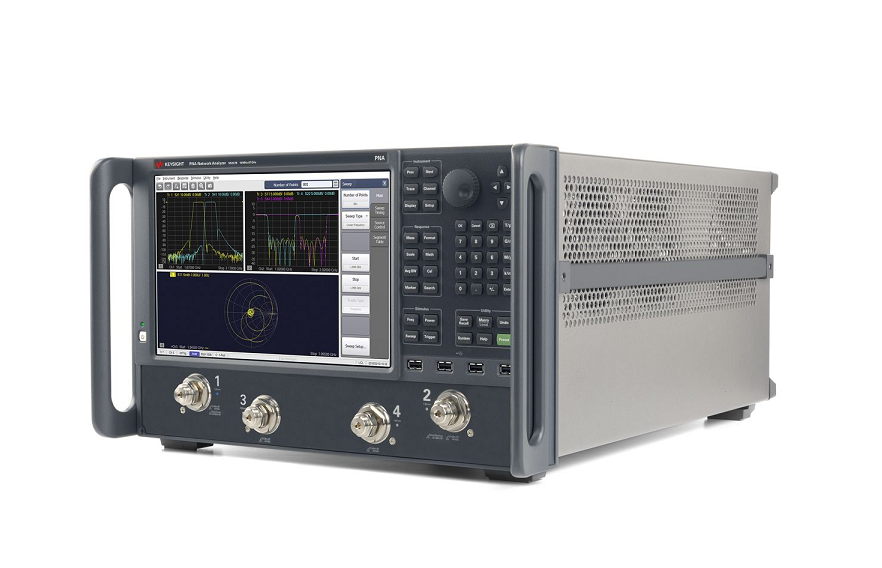

N5227B PNA 微波網絡分析儀，10 MHz 至 67 GHz，1 個信號源 2 端口和 2 個信號源 4 端口、信號源和接收機衰減器、偏置 T 型接頭、脈沖發生器和調制器、噪聲系數以及優秀的射頻性能。

PNA 系列網絡分析儀具有卓越的性能，是測試放大器、混頻器和變頻器的理想選擇。 PNA 系列將先進的硬件和應用軟件融為一體，能夠快速、準確地測量各種器件。 所有型號都包含 2 端口單信號源或 4 端口雙信號源兩種配置。 內置脈沖調制器和脈沖發生器提供了脈沖 S 參數測量。

• 性能出眾的微波網絡分析儀幫助您應對更苛刻的測量挑戰。


• 以超低不確定度和超高穩定度執行 S 參數測量。

• 利用應用軟件簡化設置，高效表征有源元器件。

• 多點觸控屏和直觀的用戶界面幫助您加速洞察元器件特性。

• 通過定制化配置得到恰當的性能，同時兼顧您的預算和測量需求。

Hardware options

N5227B-200    2-port, base hardware configuration

N5227B-201    2-port with configurable test set, reference mixer switch

N5227B-205    2-port with configurable test set, ref mixer switch, bias tees, low frequency extension

N5227B-210    2-port with metrology configuration

N5227B-219    2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees

N5227B-220    2-port with configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension

N5227B-405    4-port with second source, configurable test set, reference mixer switch, bias tees, low frequency extension

N5227B-420    4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees, low frequency extension

N5227B-400    4-port with second source

N5227B-401    4-port with second source, configurable test set, reference mixer switch

N5227B-410    4-port with second source, metrology configuration

N5227B-419    4-port with second source, configurable test set, reference mixer switch, source and receiver attenuators, bias tees

Calibration documentation

N5227B-1A7    Calibration + Uncertainties + Guardbanding (Not Accredited)

N5227B-A6J    ANSI Z540-1-1994 Calibration

N5227B-UK6    Commercial calibration certificate with test data

Additional hardware capability

N5227B-021    Add pulse modulator to internal 1st source

N5227B-022    Add pulse modulator to internal 2nd source

N5227B-020    Add IF inputs

N5227B-UNY    Enhanced low phase noise performance

Software with Subscription

S93007B    Automatic fixture removal

S93010B    Time-domain analysis

S93011B    Enhanced time domain analysis with TDR

S93015B    Real-time S-parameter and power measurement uncertainty

S93025B    Basic pulsed-RF measurements

S93026B    Advanced pulsed-RF measurements

S93029B    Noise figure measurements with vector correction

S93080B    Frequency-offset measurements

S93082B    Scalar mixer/converter measurements

S93083B    Vector and scalar mixer/converter measurements

S93084B    Embedded-LO capability

S93086B    Gain-compression measurements

S93087B    Intermodulation distortion measurements

S93088B    Source phase control

S93089B    Differential and I/Q device measurements

S930900B    Spectrum analysis up to 8.5 GHz

S930901B    Spectrum analysis up to 13.5 GHz

S930902B    Spectrum analysis up to 26.5 GHz

S930904B    Spectrum analysis up to 43.5 GHz

S930905B    Spectrum analysis up to 50 GHz

S930907B    Spectrum analysis up to 70 GHz

S930909B    Spectrum analysis up to 90 GHz

S93093B    Spectrum Analysis up to 125 GHz

S93094B    Spectrum Analysis up to and beyond 125 GHz

S93118B    Fast CW measurements

S93460B    True-mode stimulus

S93551B    N-port measurements

S93898B    Built-in performance test software

S930317B    Phase noise measurement up to 70 GHz

S930321B    Phase noise measurement up to 125 GHz

S930700B    Modulation distortion up to 8.5 GHz

S930701B    Modulation distortion up to 13.5 GHz

S930702B    Modulation distortion up to 26.5 GHz

S930704B    Modulation distortion up to 43.5 GHz

S930705B    Modulation distortion up to 50 GHz

S930707B    Modulation distortion up to 70 GHz

S94601B    Device measurement eXpert - DMX

S94602B    Limit assistant

Accessories

U8488A    Power Sensor; USB average thermocouple, 10MHz-67GHz

N5227B-1CM    Rack mount kit for installation without handles

N5227B-1CP    Rack mount kit for installation with handles

N1966A    Pulse/IO Adapter

N6171A    MATLAB Software

N5227B-SSD    Additional removable solid state drive
